3D/4D Vibration Plate Can Harm Your Knees

3D and 4D vibration plates can potentially harm our knee joints.

The side-to-side lateral movement generated by these machines not only aggravates the stretching and straining of the knee ligaments but also causes excessive wear on the cartilage covering the femoral groove.

There is no logical or scientific basis to suggest that vibration plates with complex movements would provide any added effectiveness. Instead, the lateral movement component of a 3D/4D vibration plate contradicts our natural biomechanics and may lead to injury.

3D and 4D vibration plates are created for marketing hype. Their manufacturers neglect the negative impact it may have on our body.

What is a 3D Vibration Plate?

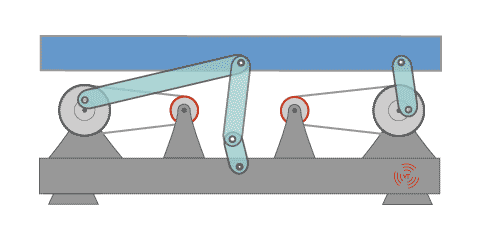

A 3D vibration plate incorporates two pivotal oscillation devices: one generates seesaw movement, and the other side-to-side lateral movement.

seesaw

+

side-to-side

=

3D

Although sellers market it as a "3D" vibration plate, its complex movement is actually two-dimensional.

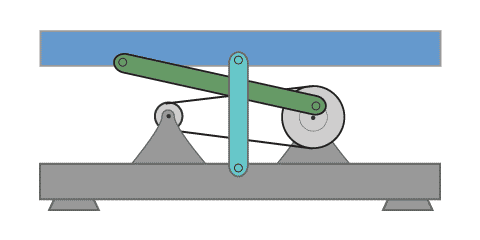

Cross-section view of a "3D" vibration plate
(The long gray bar on the left drags the platform moving side to side.)

A 3D vibration plate has 2 individually controlled motors.

What is a 4D Vibration Plate?

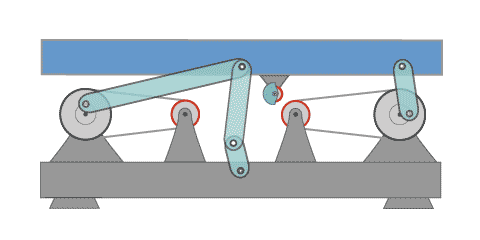

A 4D vibration plate is essentially a 3D vibration plate with a small eccentric-wheel device attached beneath the upper board.

3D

+

eccentric
wheel

=

4D

The added small eccentric-wheel device generates minimal centrifugal force, and its function is further diminished due to the absence of a spring set. As a result, the vibration amplitude generated from the eccentric wheel is extremely low and has no meaningful influence on the body, other than adding some extra noises.

[ Inside a Rumblex 4D vibration plate ]
A small eccentric-wheel device mounted beneath the upper board

A 4D vibration plate has 3 individually controlled motors.

Why 3D / 4D Vibration Plates Can Be Harmful?

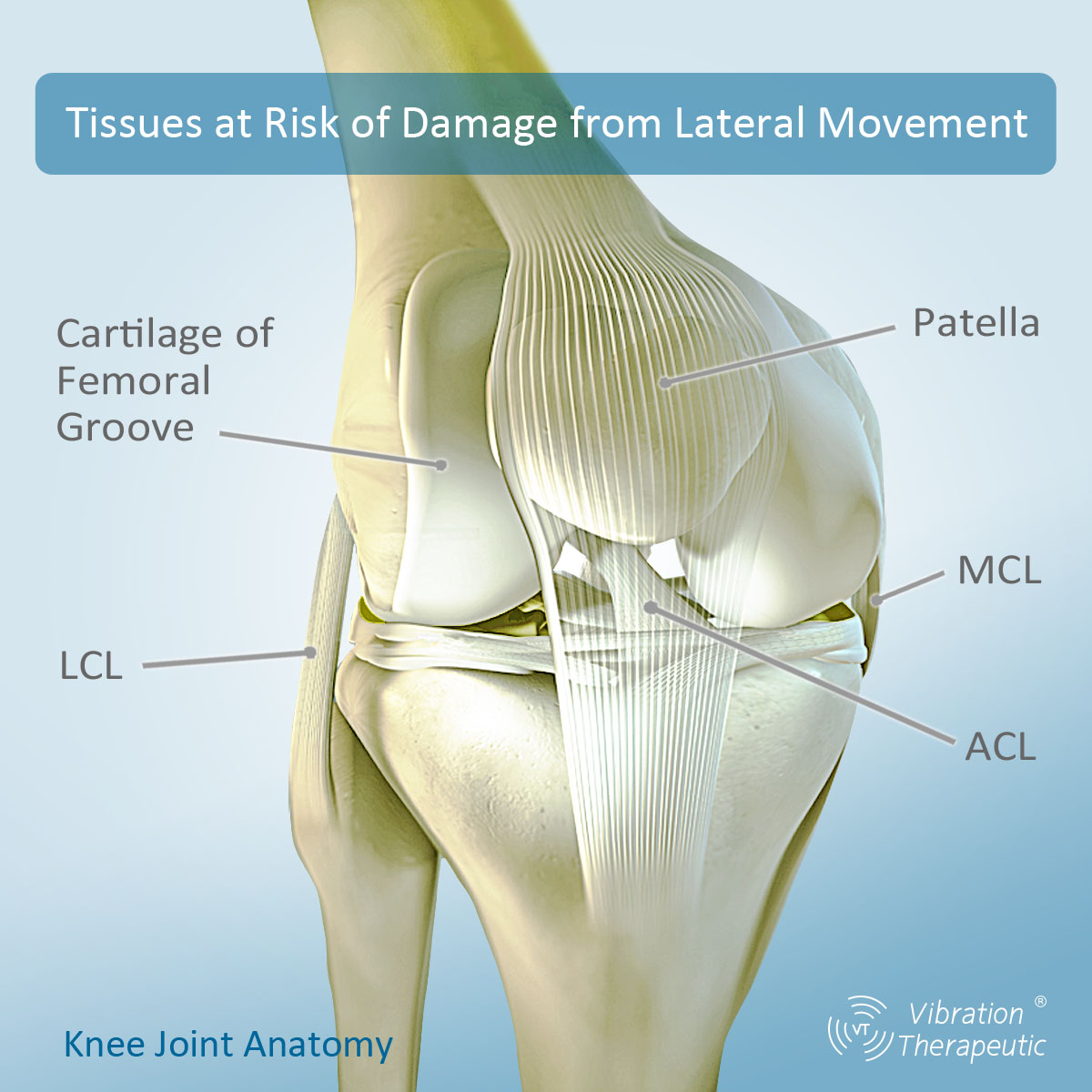

3D and 4D vibration plates can be harmful to knee joints because they generate a side-to-side lateral movement that improperly stretches and strains the knee ligaments (ACL, MCL, and LCL), potentially causing injuries.

Additionally, the side-to-side movement forces the patella (kneecap) to track sideways in the femoral groove, leading to excessive wear on the covering cartilage.

In our regular physical activities, the primary movements of our knee joints are in two dimensions (hinging). The knee can also rotate slightly, adding some three-dimensional complexity to its motion. The side-to-side (lateral) movement is minimal and often problematic, as it's not a natural function of the knee joint.

In our daily activity, to move our body side to side, we typically need to turn our body to keep our knees aligned with the direction of movement, avoiding harmful sideway movement.

No Scientific Basis, Only Marketing Hype

The side-to-side movement of a 3D or 4D vibration plate does not engage meaningful muscle work.

There is no scientific basis that more complex movements would provide additional benefits. 3D, 4D, and multi-motor vibration plates are marketing hype, which neglects the negative impact it may have on our body.

If you already have a 3D or 4D vibration plate, you should turn off its side-to-side lateral oscillation, only using its seesaw oscillation. For LifePro Rumblex 4D model, the seller mistakenly refers its side-to-side lateral oscillation as linear vibration. Don't get confused.

Vertical Movement is the Right Choice

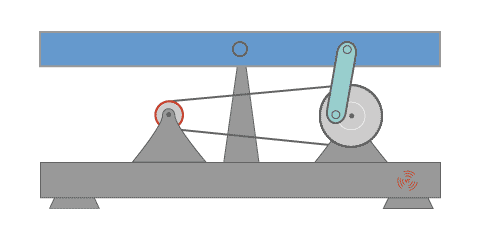

Our muscles, bones, tendons and ligaments are largely designed to overcome gravity. The vertical movement provided by a linear vibration plate or a simple pivotal oscillation plate is what we need for effectively exercising and activating our musculoskeletal and neuromuscular systems, as well as producing skeletal muscle pump effect to improve our peripheral circulation.

Choose a single-motor pivotal oscillation plate or a linear vibration plate!
